AIOAl-TL

Multipurpose AFM Probe with 4 Different Tipless Cantilevers

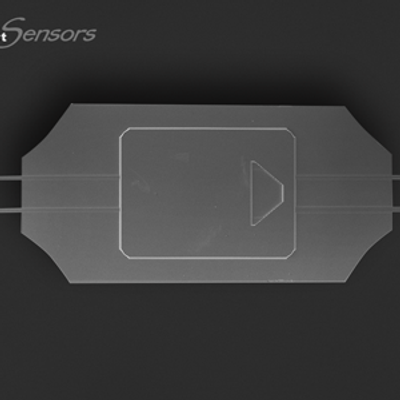

新皋企業 NANOSENSORS PPP-NCR AFM 原子力顯微鏡探針

Versatile monolithic silicon AFM probe with 4 different tipless AFM cantilevers on a single AFM holder chip for various applications: contact mode, force modulation mode, soft tapping mode and high frequency tapping/ non-contact mode.

​

AFM Tip

Height
Half Cone Angle
Radius
N/A
N/A
N/A

AFM Cantilever

Force Constant
Resonance Frequency
Length
CB1: 0.2[N/m]
CB2: 2.7[N/m]
CB3: 7.4[N/m]
CB4: 40[N/m]
CB1: 15[kHz]
CB2: 80[kHz]
CB3: 150[kHz]
CB4: 350[kHz]
CB1: 500[µm]
CB2: 210[µm]
CB3: 150[µm]
CB4: 100[µm]
